The M-Vave IR Box is an effects pedal that uses Impulse Response (IR) technology to simulate classic guitar and bass cabinets. Below are the detailed specifications of the device:
Technical Specifications:
Signal Processing:
Signal-to-Noise Ratio: 103 dB
Sampling Rate: 44.1 kHz at 24-bit
Latency: Less than 1.5 ms
Presets:

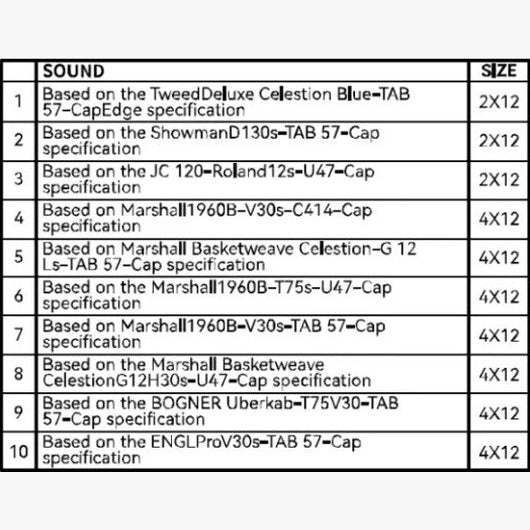

32 built-in presets:

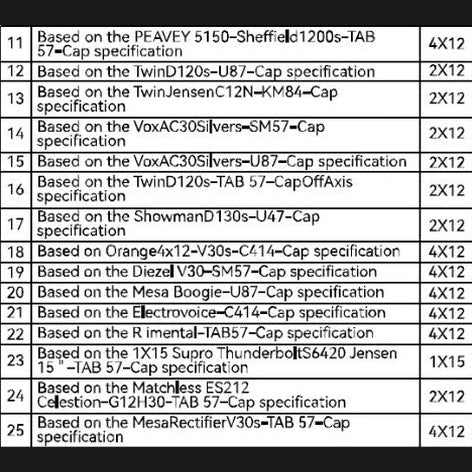

25 guitar cabinet simulations (presets 01-25)
7 bass cabinet simulations (presets 26-32)

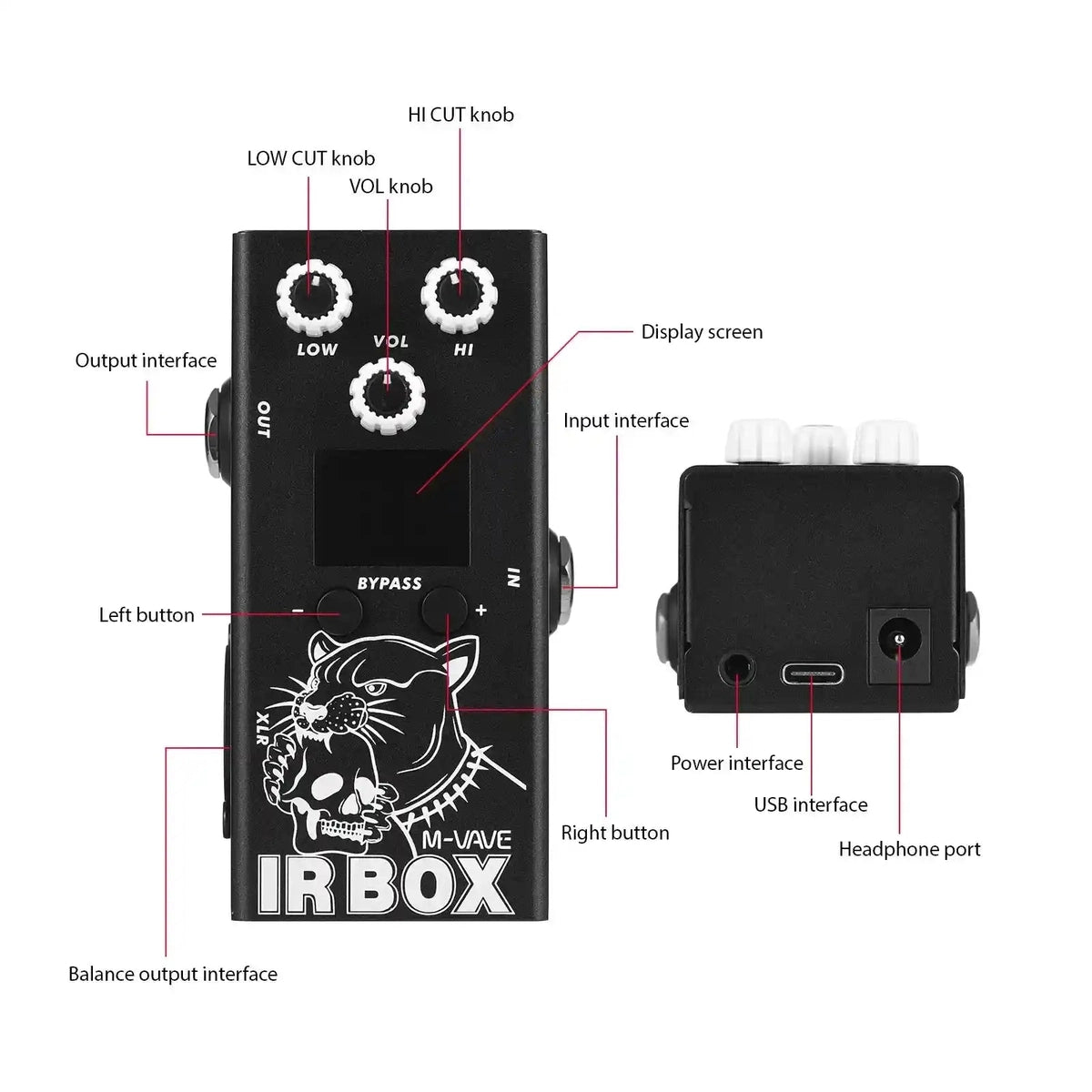

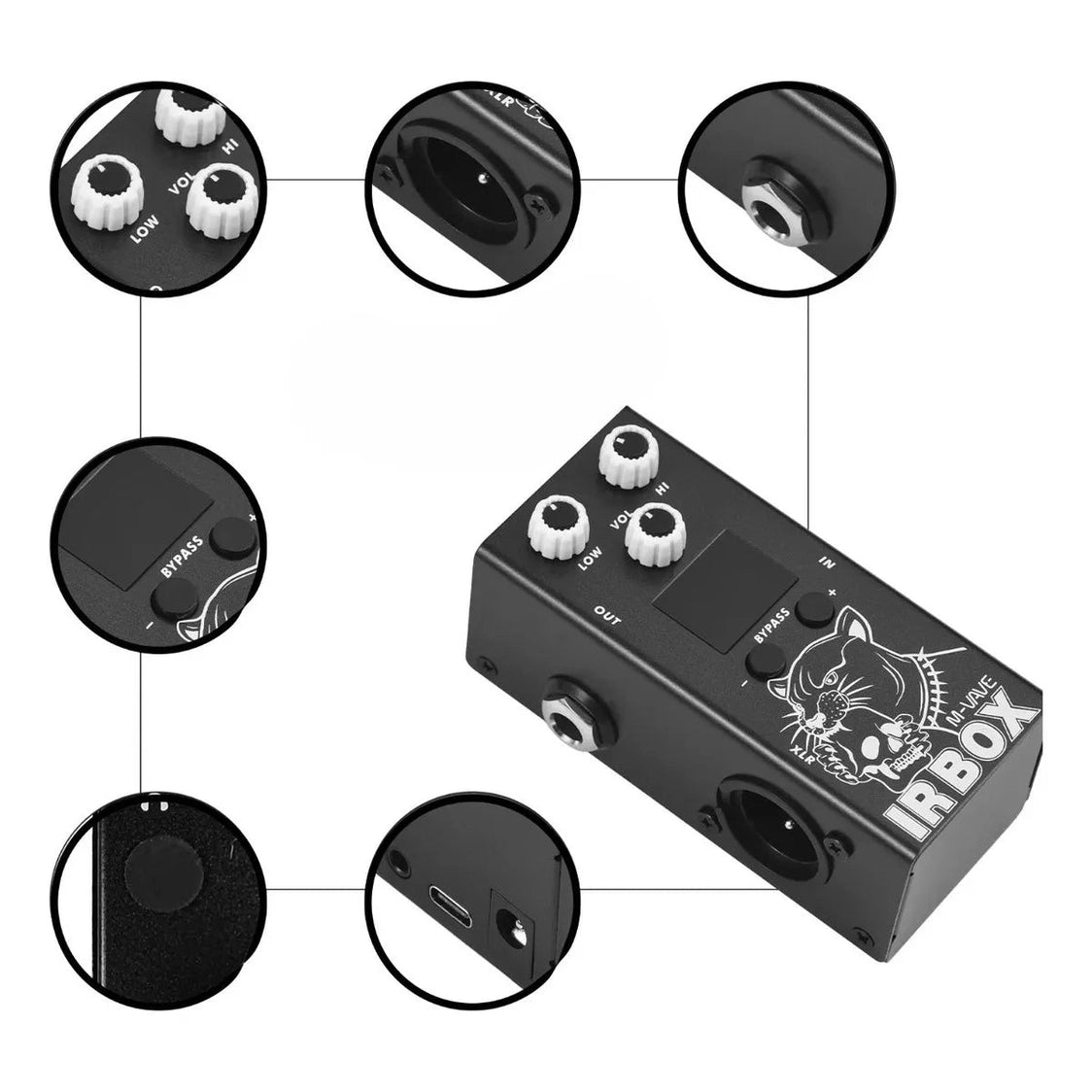

Connectivity:
Input: 1/4" (6.35mm) mono jack
Unbalanced Output: 1/4" (6.35mm) TS jack
Balanced Output: XLR
Headphone Output: 1/8" (3.5mm) stereo jack
USB-C Port: For computer connection and power supply

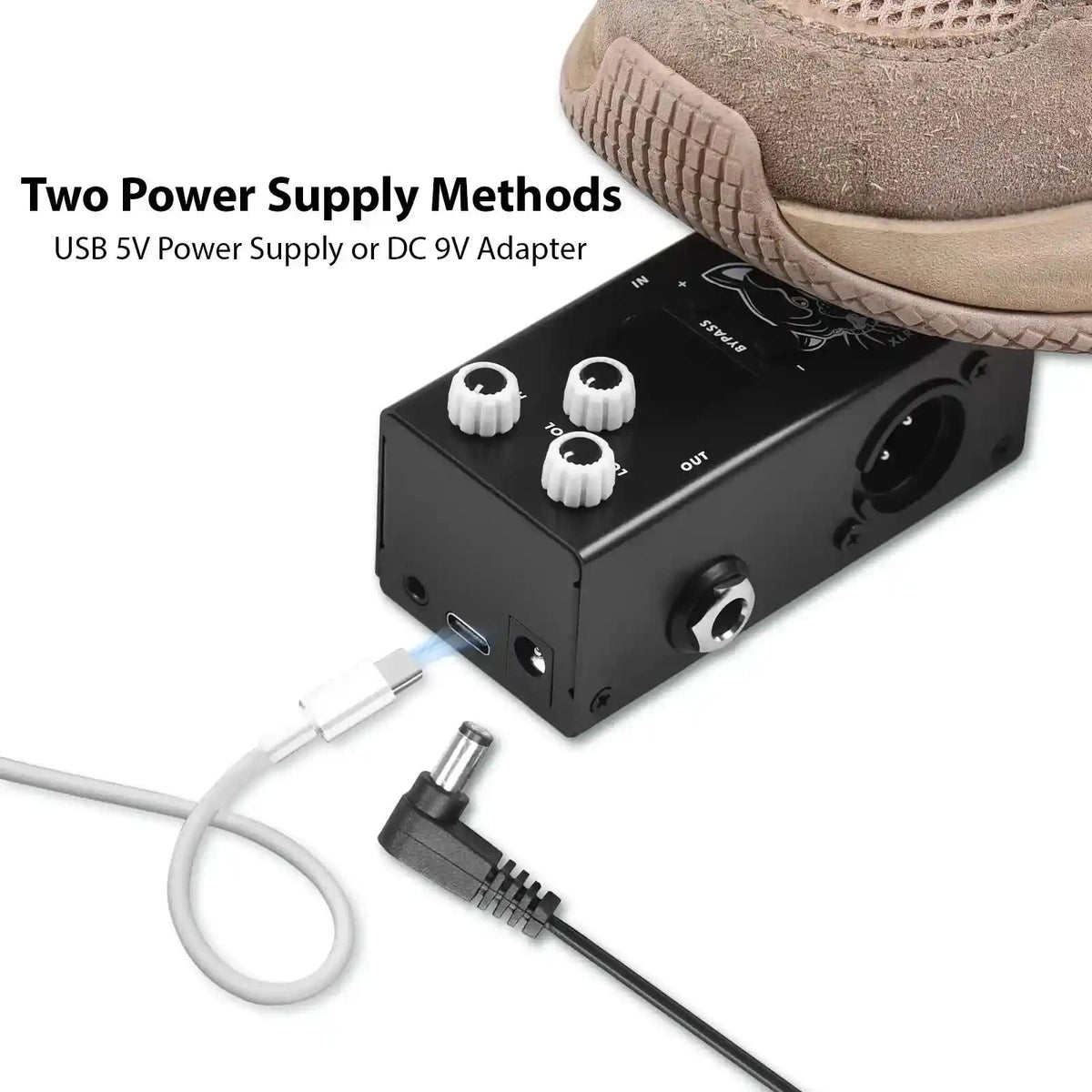

Power Supply:
Option 1:9V DC ≥ 300mA (power adapter not included)
Option 2:USB 5V ≥ 300mA
Current Consumption:
9V:80mA
5V:120mA
Dimensions & Weight:

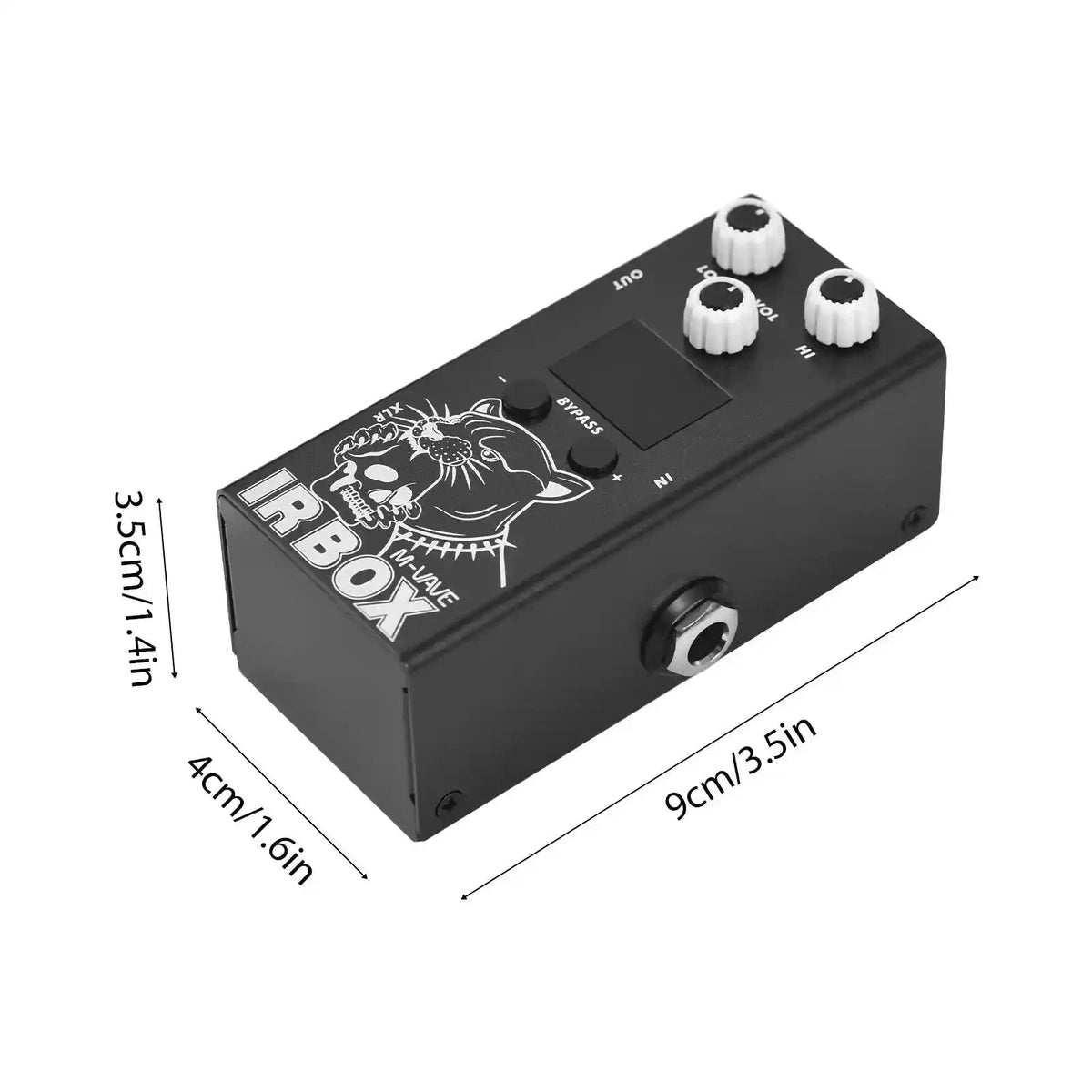

Size:90mm (L) x 50mm (W) x 45mm (H)
Weight:155g
Additional Features:

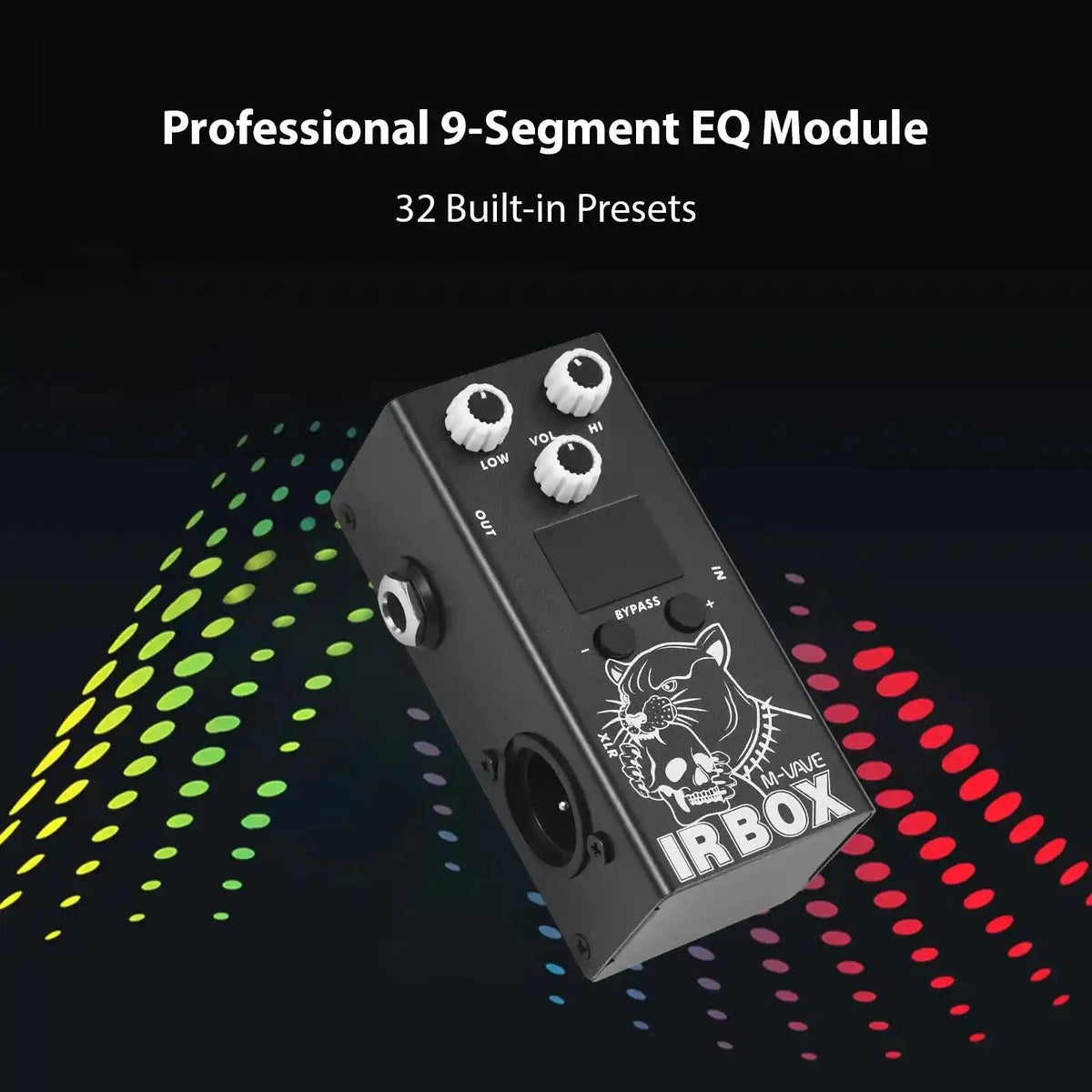

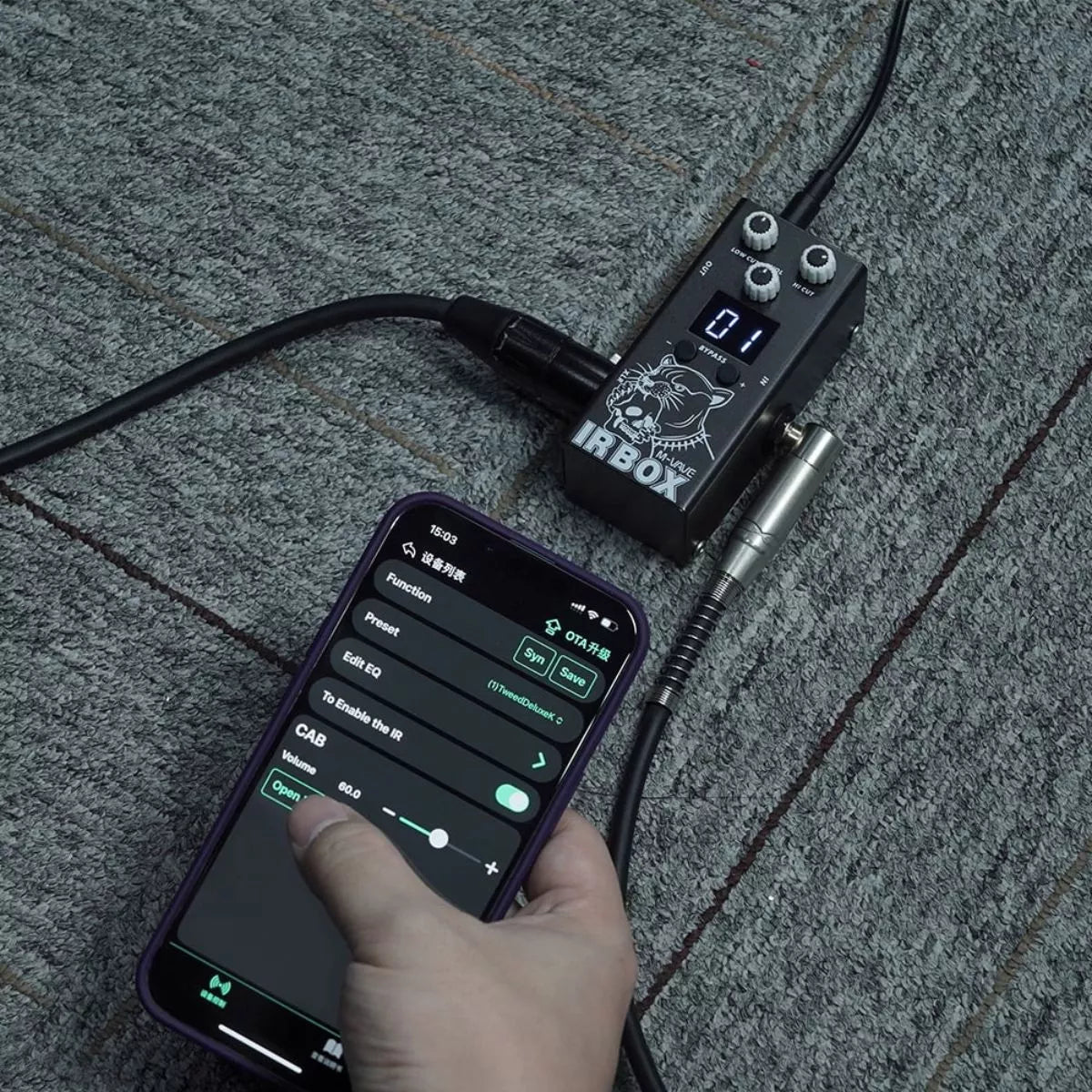

9-band EQ module, adjustable via official software or mobile app
Supports third-party IR file loading (WAV format, 44.1kHz, 24-bit, 1024/2048 sample points)
Adjustable high and low-frequency cut filters directly on the pedal
The EQ module can operate independently when the IR module is disabled
Preset import/export support via the official software
These specifications highlight the versatility and quality of the M-Vave IR Box, making it a valuable tool for musicians looking to enhance their sound with realistic cabinet simulations.
